- Model Name

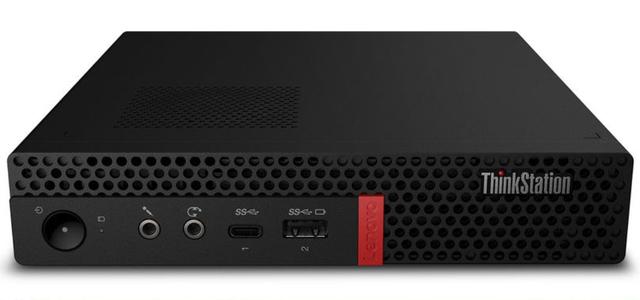

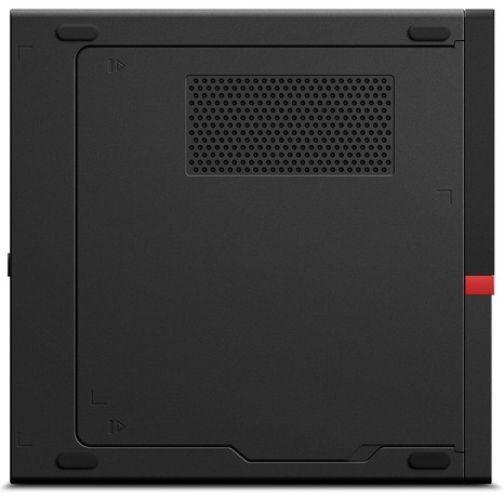

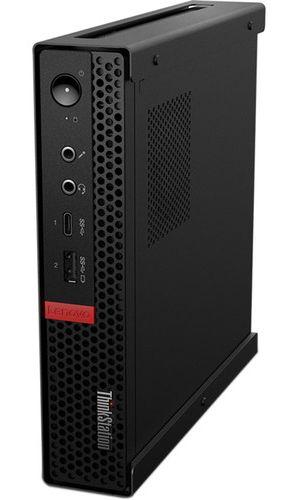

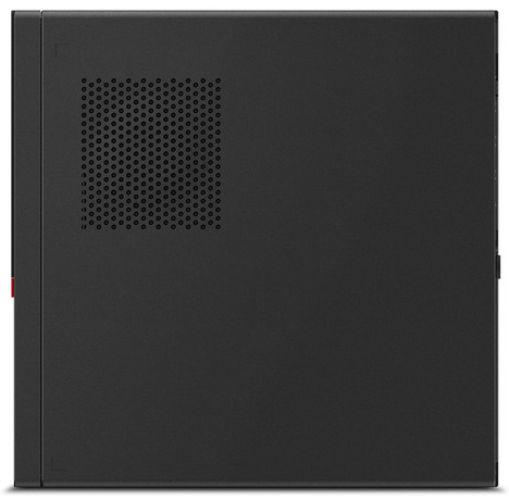

- Lenovo ThinkStation P330 Tiny Workstation Mini PC
- Dimensions (WxDxH)
- 37 x 182.9 x 179 mm (1.5 x 7.2 x 7.0 inches)
- Weight
- 1.32kg (2.91lbs)
- Operating System
- Windows OS
- PROCESSOR & GRAPHIC OPTIONS
- #3
- Intel® Core™ i7-9700T Processor (2.0GHz Up to 4.3GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 8-Cores, 8 Threads | Intel® UHD Graphics 630
- #4
- Intel® Core™ i9-9900T Processor (2.1GHz Up to 4.4GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 8-Cores, 16 Threads | Intel® UHD Graphics 630
- #5
- Intel® Core™ i5-8500 Processor (3.0GHz Up to 4.1GHz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6-Cores 6 Threads | Intel® UHD Graphics 630
- #6
- Intel® Core™ i5-9500 Processor (3.0GHz Up to 4.4GHz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6-Cores 6 Threads | Intel® UHD Graphics 630
- #7
- Intel® Core™ i5-9500T Processor (2.2GHz Up to 3.7Ghz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6-Cores 6 Threads | Intel® UHD Graphics 630
- GRAPHIC CARD DISCRETE OPTIONS
- #1
- NVIDIA Quadro® P620 2GB GDDR5
- #2
- NVIDIA Quadro P1000 4GB GDDR5
- Memory
- 16GB RAM / 32GB RAM
- Storage
- 256GB SSD / 480GB SSD / 512GB SSD / 960GB SSD / 1TB SSD
- Audio Chip
- High Definition (HD) Audio, Realtek® ALC233 codec
- Bays
- 1x 2.5"" disk bay
- M.2 Slots
- Uo to 2x M.2 SSD via onboard slots
- Expansion Slots
- One PCIe 3.0 x16 or x4 slot, low-profile, via riser card
- Onboard Ethernet
- Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ45, supports Wake-on-LAN
- WLAN + Bluetooth® OPTIONS
- Intel Dual Band Wireless-AC 8265, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 4.2, M.2 Card / Intel Wireless-AC 9560, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.1, M.2 card / No WLAN and Bluetooth

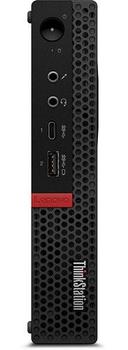

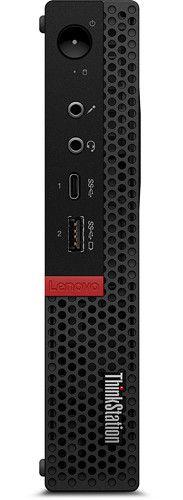

- Front Ports
- 1x USB 3.1 Gen 1 (Always On and fast charge) | 1x USB-C 3.1 Gen 1 | 1x headphone / microphone combo jack (3.5mm) | 1x microphone (3.5mm)

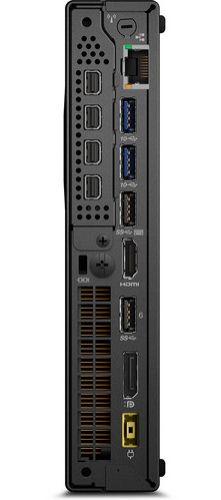

- Rear Ports
- 2x USB 3.1 Gen 1 | 2x USB 3.1 Gen 2 | 1x HDMI® | 1x DisplayPort™ | 1x Ethernet (RJ-45)
- Security Chip
- Discrete TPM 2.0, TCG certified
- BIOS Security
- Administrator password | Power-on password
- Power Supply
- 135W Adapter | 88% Efficiency | Autosensing
