- Model Name

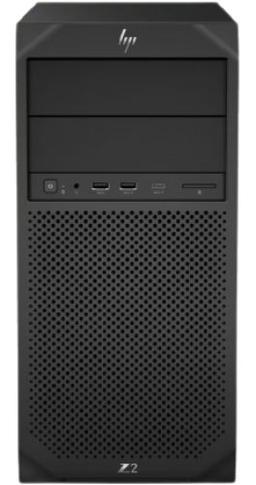

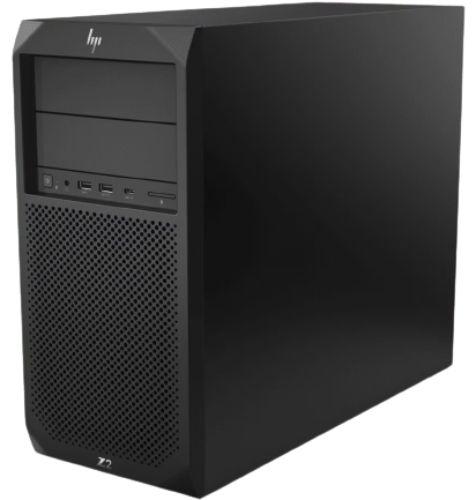

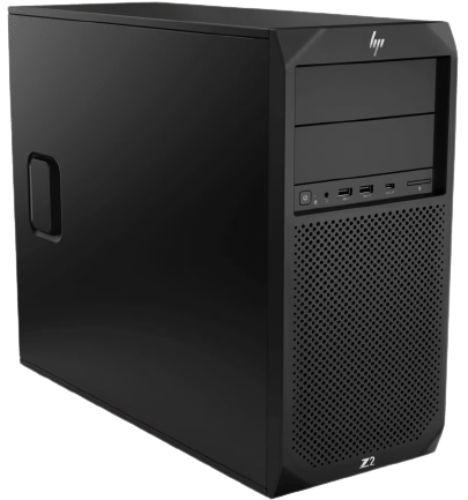

- HP Z2 Tower G4 Workstation PC
- Dimensions
- 35.6 x 16.9 x 43.5 cm (Standard tower orientation.)
- Weight
- Starting at 7 kg (Exact weight depends on configuration.)
- Operating System
- Windows OS
- PROCESSOR & GRAPHIC OPTIONS
- #7
- Intel® Xeon® E-2224G Processor (3.5GHz Up to 4.7GHz Max Turbo Frequency) 8 MB Intel® Smart Cache, 4 Cores 4 Threads | Intel® UHD Graphics P630
- #8
- Intel® Xeon® E-2136 Processor (3.3GHz Up to 4.5GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 6 Cores 12 Threads | NVIDIA Quadro P620
- #9
- Intel® Core™ i5-8500 Processor (3.0GHz Up to 4.1GHz Max Turbo Frequency), 9 MB cache, 6 cores 6 Threads | Intel® UHD Graphics 630
- #10
- Intel® Xeon® E-2176G Processor (3.7GHz Up to 4.7GHz Max Turbo Frequency), 12 MB cache, 6 cores 12 Threads | Intel® UHD Graphics P630
- #11
- Intel Core i5-9600 Processor (3.10 GHz Up to 4.6GHz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6 cores 6 Threads | Intel® UHD Graphics 630
- #12
- Intel® Core™ i7-8700K Processor (3.7GHz Up to 4.7GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 6-Cores 12 Threads | Intel® UHD Graphics 630
- #13
- Intel® Core™ i7-8700 Processor (3.2GHz Up to 4.6GHz Max Turbo Frequency)
- #14
- Intel® Core™ i5-8400 Processor (2.8GHz Up to 4.0GHz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6-Cores 6 Threads | Intel® UHD Graphics 630
- GRAPHIC CARD DISCRETE OPTIONS
- (Entry 3D)
- (Mid-range 3D)
- #4
- AMD Radeon™ Pro WX 3100 4GB Graphics
- #5
- AMD Radeon™ Pro WX 3200 4GB Graphics
- #6
- AMD Radeon™ Pro WX 4100 4GB Graphics
- (High End 3D)
- AMD Radeon™ Pro W5700 8GB 5mDP+USBc GFX
- (Ultra High-End 3D)
- #1
- NVIDIA® Quadro® P5000 16GB Graphics
- #2
- NVIDIA® Quadro® RTX 5000 16GB Graphics
- #3
- NVIDIA® Quadro® RTX6000 24GB Graphics
- Memory
- 8GB RAM / 16GB RAM / 32GB RAM / 64GB RAM
- Storage
- 256GB SSD / 512GB SSD / 756GB (256GB SSD + 500GB HDD) / 1TB SSD
- Optical Drive
- HP Slim Blu-ray Writer; HP Slim DVD-ROM; HP Slim DVD-Writer
- Audio
- Conexant CX20632-31Z, 1.5W internal mono speaker
- Expansion Slots
- 1 PCIe 3 x4 (x16 connector) | 2 M.2 PCIe 3 x4 | 1 PCIe Gen 3 x16 | 12 PCIe 3 x1 (x4 open-ended connector)
- PORTS AND CONNECTORS
- Front
- 1x headphone/microphone combo; 2 USB 3.0 (1 charging)

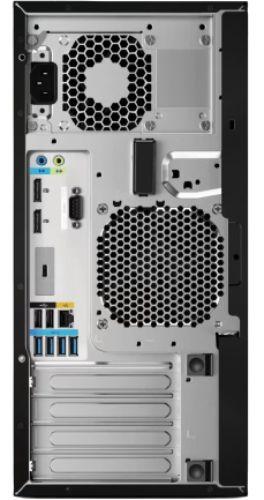

- Rear
- 1x audio-in | 1x audio-out | 1x RJ-45 | 2x DisplayPort™ 1.2 | 2x USB 2.0 | 4x USB 3.0
- Internal
- 1x USB 3.0 | 2x USB 2.0
- Optional
- Flex I/O (1 USB 3.0 and 2 USB 2.0 ports available as 2 separate 2 x 6 (3.0 x 1, 2.0 x 1) and 1 x 6 (2.0 x 1) header. Supports one HP Internal USB 2.0 Port Kit and one USB 3.0 media card reader.)
- Communications
- LAN: Integrated Intel® I219-LM PCIe® GbE; Intel® I350-T2 dual-port GbE NIC ; WLAN: Intel® Dual Band Wireless-AC 9560 802.11a/b/g/n/ (2x2) Wi-Fi® and Bluetooth® 5 Combo
- Drive Bays
- Two 5.25"; Two 3.5"; Two M.2 NVME 2280 SSD
- Power
- 500 W internal power adapter, up to 90% efficiency, active PFC; 250 W internal power adapter, up to 92% efficiency, active PFC; 650 W internal power adapter, up to 90% efficiency, active PFC
