- Model Name

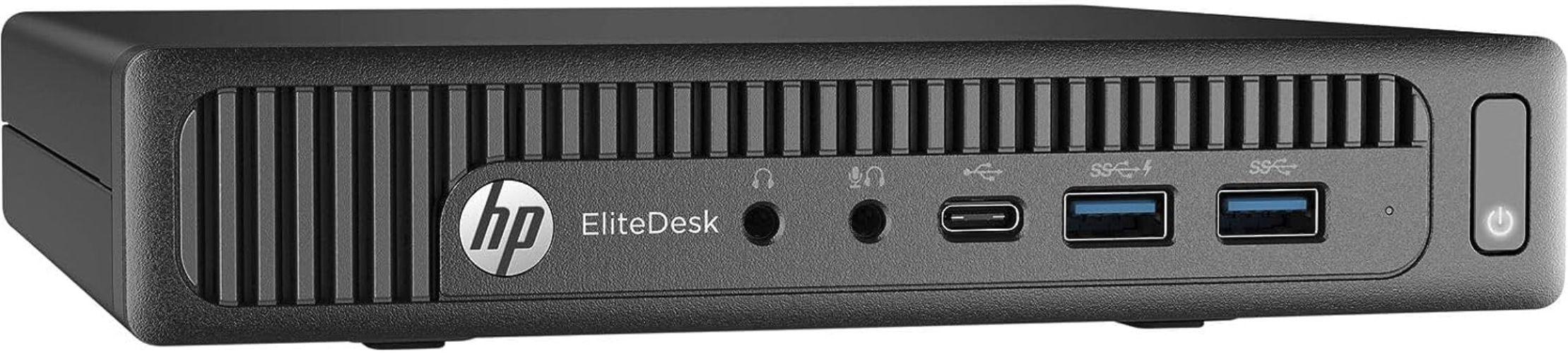

- HP EliteDesk 800 G2 Mini Desktop
- Dimensions
- 6.9 x 7 x 1.3 in 175 x 34 x 177 mm
- Weight
- 2.9 lb 1.3 kg
- Operating System
- Windows OS
- #1
- Intel® Core™ i5-6500T Processor (2.5GHz Up To 3.1GHz Max Turbo Frequency) 6 MB Intel® Smart Cache, 4-Cores 4 Threads | Intel® HD Graphics 530
- #2
- Intel® Core™ i7-6700T Processor (2.8GHz Up to 3.6GHz Max Turbo Frequency) 8 MB Intel® Smart Cache, 4-Cores 8 Threads | Intel® HD Graphics 530
- #3
- Intel® Core™ i7-6700 Processor (3.4GHz Up to 4.0GHz Max Turbo Frequency) 8 MB Intel® Smart Cache, 4 Cores 8 Threads | Intel® HD Graphics 530
- Memory
- 8GB RAM | 16GB RAM | 32GB RAM
- Storage
- 256GB SSD | 500GB SSD | 512GB SSD | 1TB SSD
- Audio
- DTS Studio Sound™ audio management technology | HD audio with Realtek ALC221 codec (all ports are stereo) | Microphone and headphone front ports (3.5 mm) | Audio line-out rear port (3.5 mm) | Multi-streaming capable | Internal speaker
- Communications LAN
- Intel® i219M GbE
- WLAN
- Intel® 3165 802.11ac wireless M.2 with Bluetooth®; Intel® 3165 802.11ac wireless M.2; Intel® 7265 802.11ac wireless M.2 with Bluetooth®; Intel® 7265 802.11ac wireless
- Expansion Slots
- 2x M.2 | (1 M.2 PCIe for WLAN. 1 M.2 PCIe for storage)
- Ports and Connectors
- Front:- 2x USB 3.0 | 1x USB Type-C™ | 1x headphone/microphone combo

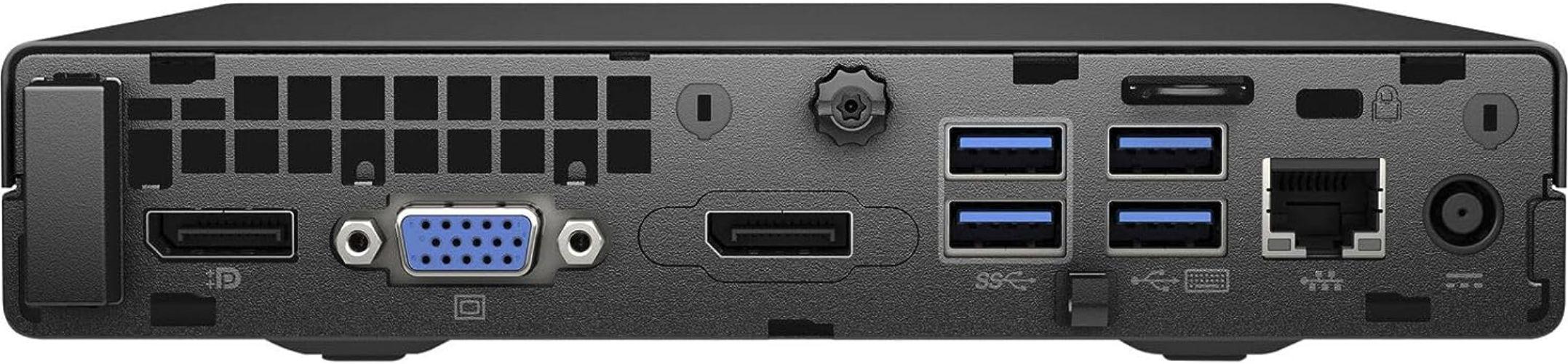

- Back
- - 4x USB 3.0 | 1x VGA | 2x DisplayPort | 1x RJ-45 | 1x serial (optional) | 1x HDMI (optional) (If serial or HDMI is selected, then only 1 Display Port remains available.)
- Internal Drive Bays
- One 6,35 cm (2.5’’); One M.2
