- Model Name

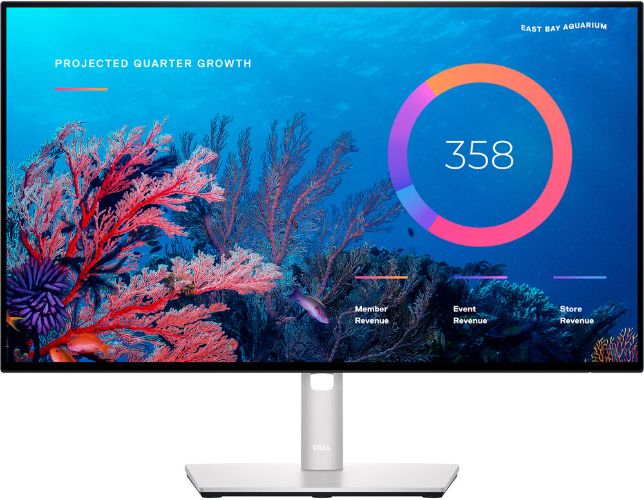

- Dell UltraSharp U2422HE USB-C Hub Monitor 24-inch
- Screen type
- Active matrix - TFT LCD
- Panel technology
- In-Plane Switching Technology
- Aspect ratio
- 16:9
- Viewable Image
- Diagonal:- 604.70 mm (23.80 in.) | Width (active area):- 527.04 mm (20.75 in.) | Height (active area):- 296.46 mm (11.67 in.) | Total area:- 156246.28 mm² (242.15 in.²)
- Pixel pitch
- 0.2745 mm x 0.2745 mm
- Pixel per inch (PPI)
- 92.53
- Viewing angle
- 178° (vertical) typical | 178° (horizontal) typical
- Luminance output
- 250 cd/m² (typical)
- Contrast ratio
- 1000 to 1 (typical)
- Faceplate coating
- Anti-Glare with 3H hardness
- Backlight
- White LED edgelight system
- Response time
- 8 ms (Normal) | 5 ms (Fast)
- Color depth
- 16.7 million colors
- Color gamut sRGB
- 100%, Rec. 709 100%, DCI-P3 85%
- Calibration accuracy
- sRGB & Rec. 709

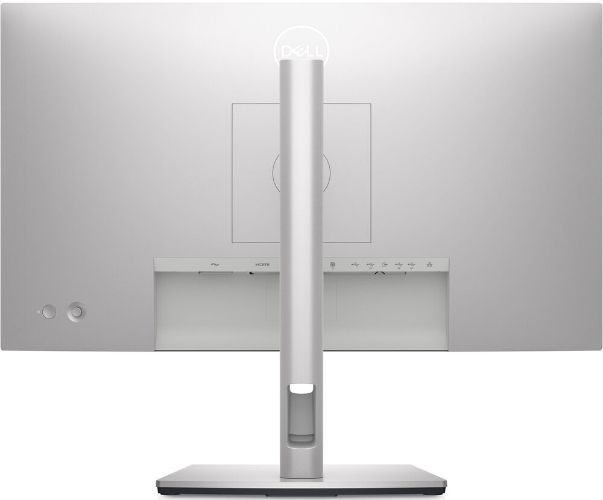

- Connectivity
- 1 x DisplayPort version 1.4 (HDCP 1.4)* | 1 x HDMI port version 1.4 (HDCP 1.4) | 1 x DisplayPort (Out) with MST (HDCP 1.4) | 1 x USB-C upstream port (video + data) (Alternate mode with DisplayPort 1.4, Power Delivery PD up to 90 W) (U2422HE only)** | 1 x USB-C upstream port (data only, 10 Gbps USB 3.2 Gen2) | 1 x USB-C downstream port with charging capability at 15 W (maximum) | 1 x super speed USB 10 Gbps (USB 3.2 Gen2) with BC1.2 charging capability at 2 A (maximum) | 2 x super speed USB 10 Gbps (USB 3.2 Gen2) downstream port (for 2422H/U2422HX) | 3 x super speed USB 10 Gbps (USB 3.2 Gen2) downstream port (U2422HE only) | 1 x audio line-out port | 1 x RJ45 port (U2422HE only)
- Border width (edge of monitor to active area)
- 5.30 mm (Top) | 5.30 mm (Left/Right) | 8.95 mm (Bottom)

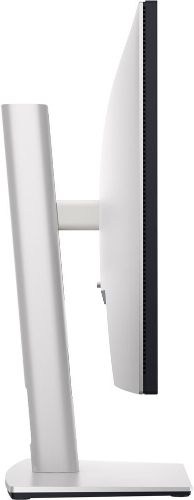

- Adjustability
- Height adjustable stand:- 150 mm | Tilt; -5° to 21° | Swivel; -45° to 45° | Pivot; -90° to 90°
- Dell Display Manager compatibility
- Easy Arrange and other key features
- Security
- Security lock slot (cable lock sold separately)
- Horizontal scan range
- 30 kHz to 83 kHz (automatic)
- Vertical scan range
- 56 Hz to 76 Hz (automatic)
- Maximum preset resolution
- 1920 x 1080 at 60 Hz
- Video display capabilities (HDMI & DisplayPort)
- 480i*, 480p, 576i*, 576p, 720p, 1080i*, 1080p
- Video display capabilities (HDMI & DisplayPort & USB-C alternate mode)
- 480i*, 480p, 576i*, 576p, 720p, 1080i*, 1080p
- Signal Cable Type
- Digital; DisplayPort, 20 pins (for U2422H/ U2422HE) | Digital; HDMI, 19 pins (U2422HX only) | Universal Series Bus; Type-C, 24 pins (U2422HE only) | Universal Serial Bus; USB-C to USB-A
- NOTE
- Dell monitors are designed to work optimally with the video cables that are shipped with your monitor. As Dell does not have control over the different cable suppliers in the market, the type of material, connector and process used to manufacture these cables, Dell does not guarantee video performance on cables that are not shipped with your Dell monitor.
- Monitor Dimensions (with stand)
- Height (extended):- 496.03 mm (19.53 in.) | Height (compressed):- 364.00 mm (14.33 in.) | Width:- 537.64 mm (21.17 in.) | Depth:- 179.57 mm (7.07 in.)
- Monitor Dimensions (without stand)
- Height:- 310.71 mm (12.23 in.) | Width:- 537.64 mm (21.17 in.) | Depth:- 48.50 mm (1.91 in.)
- Stand Dimensions
- Height (extended):- 410.80 mm (16.17 in.) | Height (compressed):- 364.00 mm (14.33 in.) | Width:- 245.00 mm (9.65 in.) | Depth:- 179.57 mm (7.07 in.) | Base:- 245.00 mm x 173.00 mm (9.65 in. x 6.81 in.)
- Weight with packaging
- 8.30 kg (18.28 lb) | Weight with stand assembly and cables:- 6.06 kg (13.35 lb) | Weight without stand assembly (For wall mount or VESA mount considerations - no cables):- 3.96 kg (8.72 lb) | Weight of stand assembly:- 1.75 kg (3.85 lb)
