- Product Name

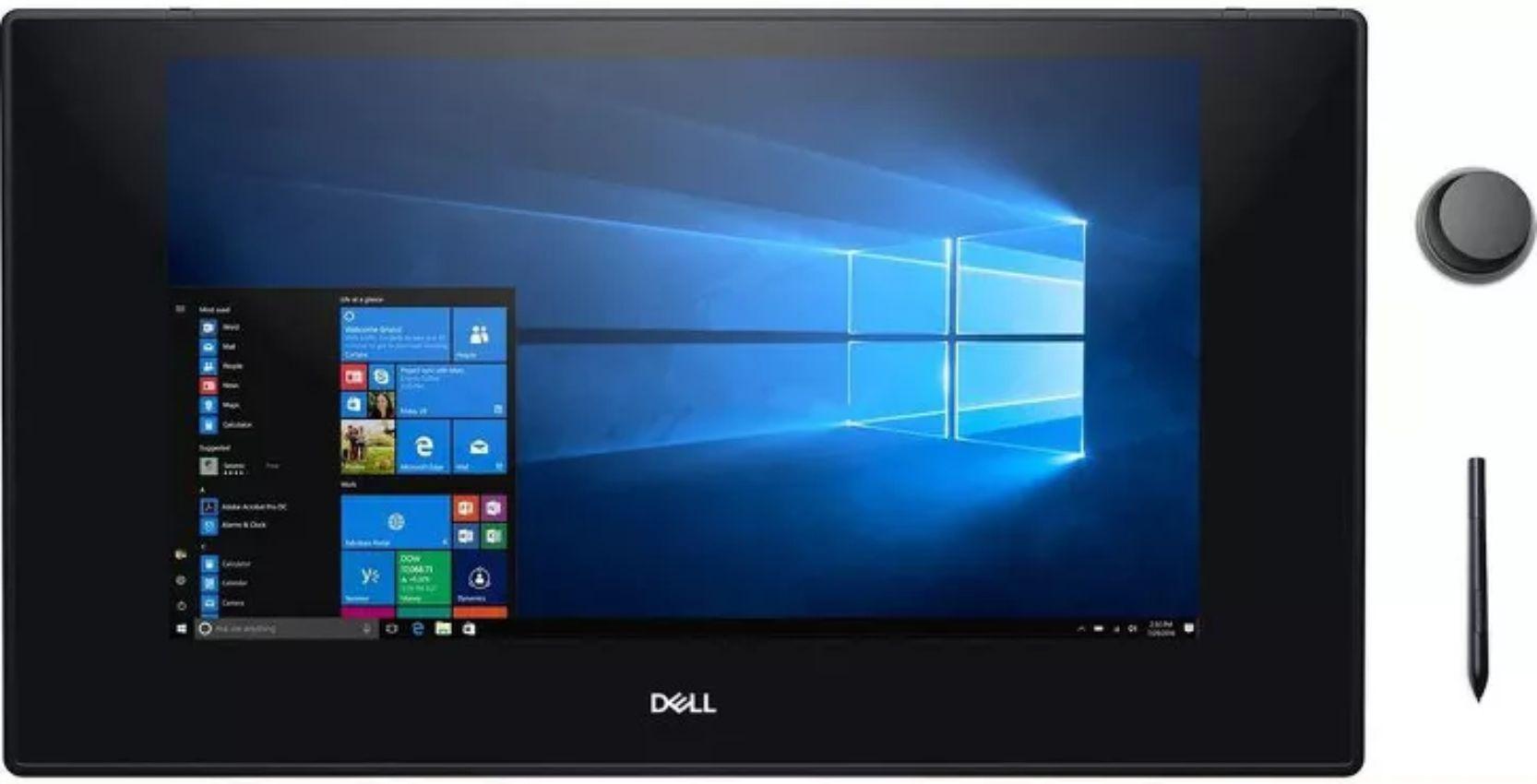

- Dell KV2718D Canvas Monitor (27-inch)
- Brand
- Dell
- Product Series
- Canvas Monitor
- Model Number
- KV2718D
- Screen type
- Active matrix - TFT LCD
- Panel Type
- In-plane switching Technology
- Aspect ratio
- 16:9
- Viewable image dimensions
- Diagonal 68.47 cm (27 inches)
- Pixel pitch
- 0.2331 mm x 0.2331 mm
- Viewing angle
- Horizontal 178° (typical) / Vertical 178° (typical)
- Brightness
- 270 cd/m² (typical)
- Contrast ratio
- 1000 to 1 (typical)
- Dynamic contrast ratio
- 8,000,000:1
- Backlight
- White LED, EDGELIGHT system
- Response Time
- 14 ms typical (G to G)
- Color depth
- 1.07 Billion colors, 10 Bit
- Color gamut
- AdobeRGB | sRGB | Rec709 | DCI-P3 | 109% CIE1931 | 124% CIE1976
- Host connectivity
- 1 x USB Type-C upstream port (support DP Alt mode) | 1 x mDP | 1 x mini HDMI
- Downstream connectivity
- 1 x Audio jack | 1 x USB 3.0 Type-C downstream port | 2 x USB 3.0 Type-A downstream port
- Cable management
- Yes
- Active Area
- 1 mm larger than Display AA on each side
- Resolution
- 0.01 mm (2540 ppi)
- Coordinate Accuracy
- ±0.4 mm (see Note 1 and 2)
- Coordinate Deviation When Tilting
- Pen ±0.3 mm (tilted ±50°from vertical) (see Note 3)
- Detectable Pen tilt
- up to 50°from vertical
- Detectable Height
- 4 to 10 mm above the sensor film (see Note 1)
- Position Report Rate
- 133 pps
- Pressure Resolution
- 1024 levels @ full scale (Note 4)
- Note 1
- The Pen Digitizer Unit and pen only, at ordinary temperature.
- Note 2
- The pen held vertically at 7 mm high from sensor film.
- Note 3
- The pen held in the center of the active area.
- Note 4
- UP pen only
- Type
- Projected Capacitive System
- Panel Diagonal
- 27 inch
- Horizontal
- 598.74 mm (23.57 inches)
- Vertical
- 337.66 mm (13.29 inches)
- Area
- 202170.5 mm2 (313.36 inches2)
- Input Method
- Dell Canvas pen, bare finger and totem
- Touch point
- 20 touch-points
- Touch response time
- 35 ms
- Touch method
- Single and multi finger
- Operating system
- Windows 10 Creators Update
